Materials
What materials can I use for thin gauge plates?
Select from five metal materials:
 |
 |
 |
 |
|
| Stainless steel (Alloy 304, Alloy 316, and Alloy 430 – magnetic) | Aluminum (Alloy 5005-H34, Alloy 3003, and Alloy 3105) | Brass (Alloy 230 and Alloy 353) | Copper (Alloy 110) | Nickel silver (Alloy 792) |
Min/Max Heights
How big can thin gauge plates be?
Thin gauge plates can be from 1 inch up to 36 inches in width. Our thin gauge plates can be up to 5.75 sq ft or 828 sq in. For example, your thin gauge plate can be 23 inches by 36 inches.
Depth
What thicknesses are there for thin gauge plates?
We have eleven thicknesses available for thin gauge plates. Depth availability depends on the metal material selected.
| .015 in | .018 in | .020 in | .022 in | .025 in | .029 in | .040 in | .050 in | .062 in | .063 in | .125 in |
How thick can a stainless steel thin gauge plate be?
Stainless steel thin gauge plates can be .015 in, .018 in, .022 in, .029 in, .050 in, and .062 in thick. Metal thickness available depends on the metal material selected.
Stainless Steel Alloy 304
| .022 in | .029 in | .050 in | .062 in |
Note: Stainless Steel Alloy 304 are available in a satin finish only.
Stainless Steel Alloy 316
| .022 in | .029 in | .050 in |
Note: Stainless Steel Alloy 304 are available in a satin finish only.
Stainless Steel Alloy 430 – magnetic
|
.015 in (in satin or bright) |
.029 in (in satin) |
.050 in (in satin or bright) |
How thick can aluminum thin gauge plates be?
Aluminum thin gauge plates can be .020 in, .025 in, .040 in, .050 in, .063 in, and .125 in. Metal thickness available depends on the metal material and finish selected.
Anodized Aluminum (Alloy 5005-H34)
| .020 in | .025 in | .040 in | .050 in | .063 in | .125 in |
| In bright gold and silver and satin blue and red | In satin silver, satin gold, or satin black | In satin silver, satin gold, or satin black | In stain clear | In stain black | In satin silver |
Aluminum (Alloy 3003 and Alloy 3105)
| .020 in | .025 in | .040 in | .050 in |
| In satin gold, satin silver, or white opaque aluminum | In satin gold, satin silver, or white opaque aluminum | In satin gold, satin silver, or white opaque aluminum | In white DuraLuxe aluminum |
How thick can brass thin gauge plates be?
Brass thin gauge plates can be .020 in, .040 in, .062 in, and .125 in thick. Metal thickness available depends on the metal material and color fill selected.
Brass (Alloy 230)
| .020 in | .040 in |
| In satin or bright gold | In satin or bright gold |
Brass (Alloy 353)
| .062 in | .125 in |
| In satin or bright yellow leaded brass | In satin yellow leaded brass |
What thicknesses are available in copper thin gauge plates?
Copper (Alloy 110) thin gauge plates are available in .020 in thickness in satin.
How thick can nickel silver thin gauge plates be?
Nickel silver thin gauge plates are available in .018 in and .040 in.
.018 in and .040 in plates come in bright or satin nickel silver.
Corner Shapes
What corner shapes are available for thin gauge plates?
Thin gauge plates can be ordered with four different corner shapes.
 |
 |
 |
 |
|
Square |
Rounded | Clipped |
Inverted |
|
1/8 in, 3/16 in, or 1/4 in radius |
1/8 in, 3/16 in, or 1/4 in radius |
Typeface/fonts
Can thin gauge plates be made with custom fonts and artwork?
Thin gauge plates can be made with customer-supplied vector art. Text and images on thin gauge plates can be either raised or recessed in etched plates.
Note: Raised text and graphics are specified in orders, the background will be painted, leaving the text or graphics the metal color.
Note: Recessed text and graphics are paint-filled.
Finishes
What imprinting capabilities are there for thin gauge plates?
Our metal materials can be imprinted in several processes. Thin gauge plates can be:
 |
 |
 |
 |
 |

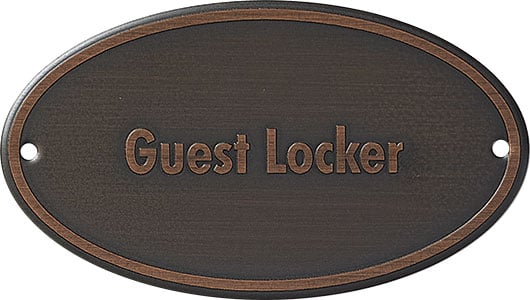

| Etched and Color-filled | Etched and Frosted | Etched and Antiqued |
(Interior and Exterior) |
Screen Printed |
Paint
Can you paint thin gauge plates?
Thin gauge plates can be fill colored or screen printed. All returns are unpainted.
Note: Sublimation prints include unlimited spot colors or four-color process printing to replicate customer artwork. Exterior sublimated plates are UV-resistant, scratch, and graffiti-proof.
Install Environment
Where can I install thin gauge plates?
Thin gauge plates are mainly installed indoors but can be for outdoor applications depending on plate type.
Note: For indoor use only: Brass, printed aluminum, and Dynasub.
Note: For indoor or indoor/outdoor use, stainless steel, anodized aluminum, and DuraLuxe.
What mounting options are there for thin gauge plates?
Thin gauge plates can be mounted by:
- Thru-hole Mount: Two or four thru-holes in 1/16 in, 1/8 in, or 3/16 in diameters. Hardware is not included.
- Double Face Tape Mount: 2 mil thick tape included in the cost. For interior use only.
Pricing Notes
- For interior printed, sublimated interior, and sublimated exterior (DuraLuxe™), pricing includes unlimited spot colors or four-color process printing, up to four holes for mounting, and a choice of plate corner shape.
- Restrictions may apply for color fill backgrounds that bleed off the edge of the plate. Etched satin anodized aluminum price includes satin silver or satin black finish.
- Interior Printed Aluminum: Pricing includes satin gold, silver, and black. Gloss black or white is available
- Sublimated Interior Aluminum (DynaSub™): Pricing includes a satin silver or gloss white finish
- Sublimated Exterior Aluminum (DuraLuxe™): For sublimated exterior aluminum, plates are gloss white aluminum
