This article refers to sign hardware for Canada. If you are a US customer, click here.
What hardware is provided with orders?
Our orders come with installation hardware unless specified. Refer below for our standard installation supplies and specifications. To jump to the specific installation supplies, click on the links below.
Threaded plastic blocks (made with plastic) to receive studs. Glue or solvent bonds to plastic letters and logos.
| Part Number | Description | Price | Use with | Stud Type | Stud Options |
 |
1/4 in diameter by 3/16 in long | $1.02 | 6-32 studs |
Aluminum Stainless Steel |
1 1/2 in, 2 in 1 in, 1 1/2 in, 2 in, 3in |
 |
 |
||||
| Description | Price | Use with | Stud Type | Stud Options | |
| 3/8 in by 1/2 in by 3/8 in long | $0.79 | 10-24 studs | Aluminum and Stainless Steel | 1 in, 1 1/2 in, 2 in, 3 in, 4 in, 5 in, 6 in | |
 |
 |
||||
| Description | Price | Use with | Stud Type | Stud Options | |
| 1/2 in diameter by 3/8 in long | $0.79 | 10-24 studs | Aluminum and Stainless Steel | 1 in, 1 1/2 in, 2 in, 3 in, 4 in, 5 in, 6 in | |
 |
 |
||||
| Description | Price | Use with | Stud Type | Stud Options | |

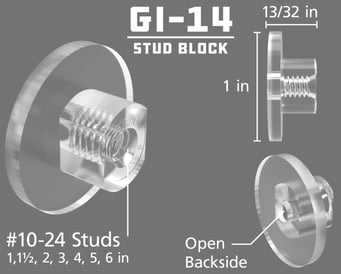

| 1 in diameter by 13/32 in long | $1.17 | 10-24 studs | Aluminum and Stainless Steel | 1 in, 1 1/2 in, 2 in, 3 in, 4 in, 5 in, 6 in | |
 |
 |
||||
| Description | Price | Use with | Stud Type | Stud Options | |

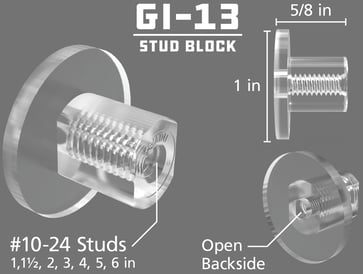

| 1 in diameter by 5/8 in long | $1.17 | 10-24 studs | Aluminum and Stainless Steel | 1 in, 1 1/2 in, 2 in, 3 in, 4 in, 5 in, 6 in | |
Plastic Pads with Threaded Thru Hole (screws onto studs)
Plastic pads are made with plastic with threaded holes for 10-24 studs. Thread pad onto stud to create a stand-off or combination mount. Adhere the pad to the mounting surface with silicone or construction adhesive.
|
Part Number |
Description |
Each |
Used to Install |
|
|
3/4 in diameter |
$0.79 |
Formed, Injection Molded, Laser Cut, or Display Letters |
 |
1 in diameter |
$0.79 |
Formed, Injection Molded, Laser Cut, or Display Letters |
|
|
1 3/4 in diameter |
$0.94 |
Formed, Injection Molded, Laser Cut, or Display Letters |
|
|
3 in diameter |
$1.17 |
Formed, Injection Molded, Laser Cut, or Display Letters |
Plastic Pads with Studs (screws into stud blocks)
Threaded plastic 1" diameter pads made with CAB plastic with non-removable 10-24 studs. Thread stud into stud block to create a pad mount with a stand-off. Adhere the pad to the mounting surface with silicone or construction adhesive. 1-inch diameter pad with stud.
|
Part Number |
Description |
Each |
Used to Install |
 |
1/2 in stud length |
$1.17 |
Formed, Injection Molded, Laser Cut, or Display Letters |
 |
3/4 in stud length |
$1.17 |
Formed, Injection Molded, Laser Cut, or Display Letters |
 |
1 in stud length |
$1.17 |
Formed, Injection Molded, Laser Cut, or Display Letters |
|
|
1 1/2 in stud length |
$1.27 |
Formed, Injection Molded, Laser Cut, or Display Letters |
 |
2 in stud length |
$1.27 |
Formed, Injection Molded, Laser Cut, or Display Letters |
Decorative Stand-Offs
|
Each |
Up to 3/8 in material |
1/2 in – 7/8 in material |
1 – 1 1/8 in material |
|
|
1/2 in diameter 3/4 in stand-off |
$13.10 | $13.70 | $14.50 | |
|
1/2 in diameter 1 1/2 in stand-off |
$16.50 | $17.50 | $18.30 | |
|
1 in diameter 3/4 in stand-off |
$19.20 | $20.20 | $21.10 | |
|
1 in diameter 1 1/2 in stand-off |
$24.50 | $25.90 | $27.20 |
Notes:
- 1/2 in diameter stand-offs: For use on smaller, lighter panels. #8 screw
- 1 in diameter stand-offs: For use on small or larger, heavier panels. #10 screw
Adhesives
We have tested and approved Chem-Calc 1200 or GE RTV108 squeeze tubes or clear silicone for installing lighter and smaller letters that are mounted with studs and/or pads. Otherwise, always test your adhesive for the installation situation and use a quality silicone product.
Lighter and smaller parts can be installed with a quality silicone adhesive. Heavier and larger letters and plaques should be installed with a stronger adhesive than silicone. Always match your adhesive to the mounting surface and product weight. Use a stronger industrial adhesive or epoxy along with appropriate anchors and or additional structural support when in doubt.
| Item |
Price |
|
10 oz silicone caulking tube |
$59.80 |
|
2.8 oz silicone squeeze tube |
$49.50 |
Clear Acrylic Strips (Rails)
Used for installing plastic letters. Glue - not silicone - letters to strips, and stall strips on the wall. Good for irregular or corrugated surfaces. Letters must be ordered pad for rail.
|
Item |
Acrylic Strips |
|
3/16 in by 1 1/2 in by 72 in |
$53.80 |
Detachable Studs
Includes a package of six with a compatible Allen wrench.
|
Item |
Detachable Stud Price |
|
Small: 6-32 (1/8 in diameter stud) |
$49.50 |
|
Medium: 10-24 (3/16 in diameter stud) |
$51.90 |
|
Large: 1/4-20 (1/4 in diameter stud) |
$71.00 |
Aluminum or Stainless Steel Nuts
Available for:
| 4-40 studs | 6-32 studs | 10-24 studs | 1/4-20 studs |
|
Item |
Price |
|
3/16 in nuts |
$0.50 |
Aluminum Spacers
Aluminum spacers are stocked in three sizes:
-
Large: .275 inch inside diameter for 1/4-20 studs
-
Small: .190 inch inside diameter for 10-24 studs
-
Slim: .148 inch inside diameter for 6-32 studs and 4-40 studs; 1 in max length
Standard Spacer Lengths
| Large | Small | Slim | ||
| 1/8 in | 1/8 in | 1/8 in | ||
| 1/4 in | 1/4 in | 1/4 in | ||
| 3/8 in | 3/8 in | 3/8 in | ||
| 1/2 in | 1/2 in | 1/2 in | ||
| 5/8 in | 5/8 in | 3/4 in | ||
| 3/4 in | 3/4 in | 1 in | ||
| 7/8 in | 7/8 in | |||
| 1 in | 1 in | |||
| 1 1/2 in | 1 1/2 in | |||
| 2 in | 2 in |
Aluminum or Stainless Steel Studs
Special lengths in stainless steel studs may be available. Visit Partner Portal for a quote.
|
Aluminum Studs |
1 in |
1.5 in |
2 in |
3 in |
4 in |
5 in |
6 in |
|
1/8 in (6-32) |
- |
$0.87 |
$0.87 |
- |
- |
- |
- |
|
3/16 in (10-24) |
$0.61 |
$0.61 |
$1.06 |
$1.26 |
$1.80 |
$2.22 |
$2.87 |
|
1/4 in (1/4-20) |
- |
- |
$1.57 |
$1.57 |
$1.66 |
$1.66 |
$1.82 |
|
Stainless Steel Studs |
5/8 in |
1 in |
1.5 in |
2 in |
3 in |
4 in |
5 in |
6 in |
8 in |
|
3/32 (4-40) |
- |
$0.97 |
- |
$0.99 |
- |
- |
- |
- |
- |
|
1/8 in (6-32) |
- |
$0.87 |
$1.00 |
$1.00 |
$1.49 |
- |
- |
- |
- |
|
3/16 in (10-24) |
$0.99 |
$0.99 |
$0.99 |
$1.32 |
$1.42 |
$1.72 |
$2.40 |
$2.70 |
- |
|
1/4 in (1/4-20) |
- |
$2.12 |
- |
$2.43 |
$2.96 |
$3.21 |
$3.62 |
$4.01 |
- |
|
3/8 in (3.8-16) |
- |
- |
- |
- |
- |
$8.54 |
- |
$9.08 |
$9.66 |
Note: We reserve the right to limit order quantities.
More About Mounting and Installation
