Mounting Hardware: The Foundation Behind Every Sign

When it comes to dimensional signage, most conversations start with the sign itself, materials, finishes, colors, and branding. But experienced sign professionals know the real starting point is something else entirely: the surface the sign is mounting to.

Brick, drywall, metal paneling, tile, wood, glass, and concrete all require different installation considerations. Environmental conditions matter too. That’s why Gemini offers a wide range of mounting hardware options designed to support successful installs across different surfaces and sign types.

Every Gemini dimensional sign includes mounting hardware, but installation requirements can vary based on the project. In some cases, additional or alternative hardware may be recommended depending on the mounting surface or environment.

Why Hardware Selection Matters

Hardware helps ensure:

  • Proper sign alignment and spacing
  • Long-term durability and Easier installation
  • Secure mounting across various surfaces

Selecting hardware without considering the installation surface can create challenges in the field, increase installation time, or affect the longevity of the sign.

Before quoting a project, it’s important to understand:

  • What surface the sign will mount to
  • Whether the installation is interior or exterior
  • Accessibility for installation and future maintenance

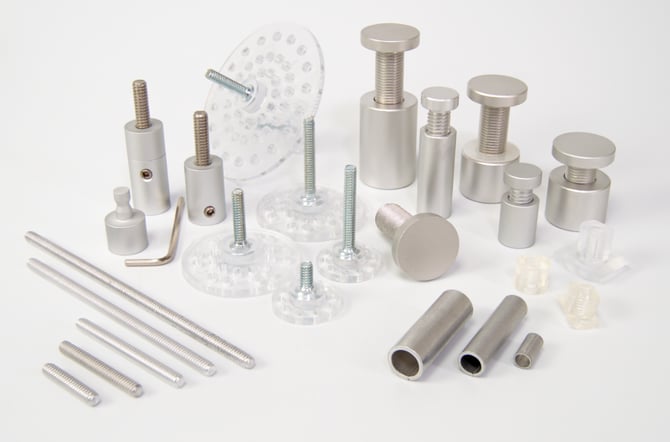

Gemini Mounting Hardware Options

Studs

Stud mounting is one of the most common methods for dimensional letters and logos. Studs are threaded rods installed into the back of the sign and mounted into pre-drilled holes on the installation surface.

Studs are commonly used with most flat cut products such as acrylic, PVC, metal, all laminate products, formed plastic and lit products.

Stud mounting provides strong, permanent installation and works especially well on solid surfaces, such as drywall and concrete.



Detachable studs

Detachable studs function similarly to standard studs but can be removed from the sign body when needed, making them ideal for servicing illuminated signs. This allows the sign face to be removed for access to internal components while the back of the letter remains mounted to the wall, eliminating the need to take down the entire sign.

These are helpful for:

  • Easier shipping and handling
  • Installations with tight access
  • Projects where letters may need future removal or replacement

Detachable studs are commonly used with dimensional letters and logos where installation flexibility is important.



Plastic pads with threaded thru hole


Plastic pads with threaded thru holes provide an alternative to standard stud mounting and are especially useful when installing signs on corrugated, uneven, or irregular surfaces. The pad helps create a more stable and level mounting point while distributing pressure more evenly across the surface. Unlike studs, which mount directly into the back of the letter, threaded thru-hole pads allow screws to pass through the pad itself for added flexibility during installation.

This hardware is commonly used with Gemini products such as:

  • Formed plastic letters
  • Injection molded letters
  • Lightweight dimensional letters

Plastic pads with threaded thru holes are ideal for applications where surface conditions make traditional stud mounting more difficult or where additional spacing and leveling support are needed.



Plastic pads with studs

Plastic pads with studs combine the benefits of stud mounting with added surface area support.

These are commonly used for:

  • Lightweight letters
  • Uneven mounting surfaces
  • Applications requiring additional spacing from the wall



Plastic blocks

Plastic blocks receive threaded studs and help create stand-off distance between the sign and mounting surface.

These are useful when:

  • Additional depth is desired
  • Surface irregularities need to be accommodated
  • Not directly flush to the mounting surface

They are frequently paired with dimensional letters and logos in both interior and exterior applications.



Raceways

Raceways provide a single mounting structure that supports multiple letters or illuminated components, reducing the need to mount each letter individually. For example, instead of drilling and wiring eight separate illuminated letters, all letters can be pre-mounted to one raceway for faster installation and easier servicing.

Raceways are commonly used for:

  • Face Lit signs
  • Projects where minimizing wall penetrations is preferred
  • Installations on surfaces where drilling multiple holes is not ideal

By consolidating mounting and electrical components into one structure, raceways can simplify installation, streamline maintenance, and help preserve the mounting surface.

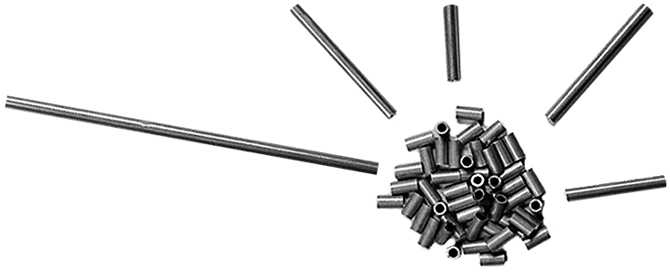

Standoffs & Spacers

image-png-Jun-02-2026-04-02-29-1275-PM



 image-png-Jun-02-2026-04-00-09-2315-PM





Standoffs and spacers create separation between a sign and the mounting surface, giving the sign a floating appearance and adding depth. They are commonly used with halo lit signs, where the space behind the sign allows light to escape and reflect off the wall, creating the signature halo effect. Standoffs and spacers can also help compensate for uneven mounting surfaces while maintaining consistent spacing.

They are commonly used with:

  • Halo lit signs
  • Acrylic signs
  • Metal signs

          Standoffs and spacers are ideal when:

          • A floating or stand-off effect is desired
          • Consistent spacing from the wall is required
          • Surface leveling is needed
          • Additional depth and visual interest will enhance the sign's appearance

                  While some standoffs feature a more decorative, architectural look, both standoffs and spacers serve the same primary purpose: creating separation between the sign and the mounting surface.



                  Z clips (also known as French cleats)

                  Z clips are interlocking metal brackets that allow signs or panels to hang securely while remaining removable. They create a clean installation with concealed hardware while allowing easy access for future servicing, replacement, or updates.

                  They are commonly used with:

                  • Dimensional plaques
                  • Interior architectural signage
                  • Large acrylic or metal panels
                  • Directory signs
                  • Wall displays and branded feature panels

                  They work well with:

                  • Large panels
                  • Interior displays
                  • Signs requiring future access or replacement

                  Z clips are ideal for larger or heavier sign products that benefit from secure mounting with easy removal capabilities.



                  Double Face Tape
                  Double-face tape is typically used for lightweight interior signage and does not require drilling, making it a fast and simple installation option for smooth interior surfaces.

                  It’s commonly used with:

                  • Lightweight logos

                  • Thin acrylic nameplates

                  • Interior directional signage

                  While convenient, tape-only installations should always be evaluated based on surface type, environmental exposure, and sign weight.



                  Start with the surface

                  No two installations are exactly alike. The same sign may require different hardware depending on whether it’s mounting to brick, drywall, tile, glass, or metal.

                  That’s why the most important question in dimensional signage isn’t “What sign are we making?” It’s “What surface is it going on?”

                  Understanding the installation environment early helps ensure the right hardware is selected from the start—leading to smoother installs, better performance, and long-term success in the field.
