What guides and drawings are available for installation?
We offer several guides and drawings for installing your letters and logos.
Note: Certain guides may only be available for certain products. (Drawing/Guide Overview)

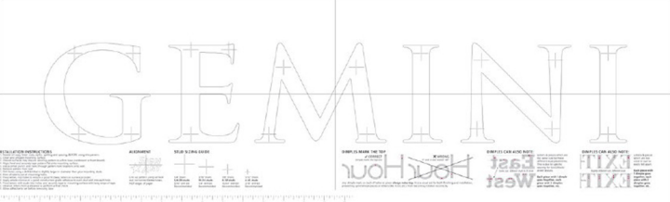

Perfect Pattern Computer-generated tracing of letters and exact mounting hole locations. Printed on weather-resistant material that is 54 inches high by necessary length and may come in pieces depending on the size of the installation.
Note: For flat cut metal (1/4 inch thick and up), flat cut acrylic, and Gemleaf (3/8 inch and up) only. Learn more about Perfect Pattern here.
Drill Pattern This is a computer-generated tracing of letters with hand-punched hole locations of studs, printed on #60 white grid paper. Once taped to the wall, hole locations are drilled and then filled with adhesive. Created on weather-resistant material that is 54 inches high by necessary length and may come in pieces depending on the size of the installation.
Rigid Stencil Guides Stencil is a computer-generated full-size cutout designed for smaller letters, logos, or bars. Typically used to install double face tape mounted letters. The guide is taped to the wall and letters are set inside the cutout and placed on the wall. Cardboard material is 22.3 inches high by 93.3 inches wide and may come in pieces depending on the size of the installation.
Material: Cardboard
Rigid Spilt Stencil This stencil guide is a partial cutout of the bottom portion of the letters about the baseline, plus 2 inches below the baseline which provides a perfect way to install plain, pad, or double face tape mounted flat cut letters. Rigid Spilt Stencil is generated using the same file that we use to produce your letters. The Gemini Layout Team will determine if Stencil or Spilt Stencil is best for your order. Material: Cardboard
Spacing Guide A visual reference guide is typically used for pad mounted letters. The letters in specific copy are spelled out and properly spaced on a long pattern table or computer-generated. A narrow – approximately 2 inch – piece of paper contains small hash marks or plotted lower portions of the letters. The guide is secured to the wall with tape, but the installer provides a visual guide for installing letters. Material: Paper
Plot Drawing Full size plot drawing, showing actual style and size desired by customer. This drawing is then sent Fed-Ex or UPS to the customer as they desire Material: Paper
Line Drawing An 8 1/2 inch by 11 inch drawing showing the letter style and copy desired. A description of the style, size, and material will be provided on the drawing. The drawing also gives an approximate line length.
