| Materials | Min/Max Heights |
| Depth | Typeface/Fonts |
| Finishes | Install Environment |
| Mounting and Installation |
Materials
What materials make injection molded plastic letters?
Injection molded plastic letters are made of durable, UV-stable plastic.
Min/Max Heights
How big can injection molded plastic letters be?
Injection molded plastic letters can be up to 18 inches tall.
How small can injection molded plastic letters be?
They can be as small as 2 inches.
Depth
How thick can injection molded letters be?
Injection molded plastic letters can be from 3/8 inch up to 1 1/2 inches thick.
Typeface/fonts
Can injection molded plastic letters be made with custom fonts?
For injection molded plastic letters, customers have a selection of three fonts.
- Lowercase letters are 90% of the corresponding uppercase price
- Small punctuation marks, such as commas, periods, or dashes, are 33% of the uppercase letter price
Available Fonts
 |
 |
 |

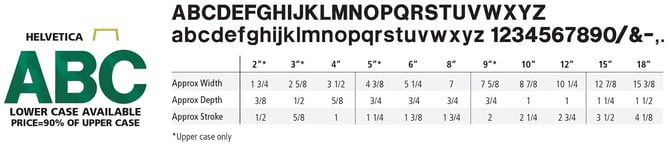

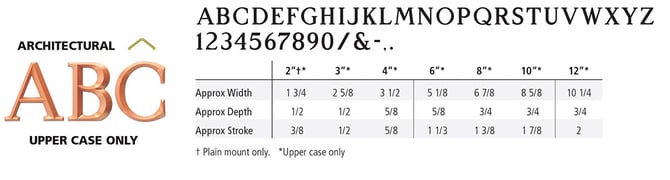

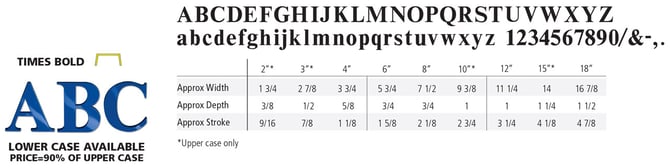

| Architectural | prismatic face | Helvetica | flat face | Times Bold | flat face |
|
Note: Custom fonts, heights and depths are not available for injection molded plastic letters.
Finishes
What finishes are available for injection molded plastic letters?
Our injection molded plastic letters are painted. We offer a variety of standard paint colors and offer custom paint matching. Our paint is automotive quality, promoting durability for the longevity of your signage.
Install Environment
Where can I install injection molded plastic letters?
They are for interior and exterior applications.
What mounting options are available for injection molded plastic letters?
We offer several standard mounting options for injection molded plastic letters.
Note: We provide standard mountings and installation patterns with your order for seamless installation.
Standard Mounting
 |
Stud Mount The stud mount includes threaded blocks solvent-bonded to the letter back to receive a 10-24 stud. A silicone adhesive is applied to the studs and into the drilled holes at installation. The price listed includes a drill pattern. 3" height minimum for stud mounting. |
 |
Pad Mount This mount is for letters up to 24 inches. Threaded blocks are solvent-bonded to the letter backs to receive a perforated pad. A silicone adhesive adheres to the perforated pads to the installation surface. Spacing guides are available for this installation. Most letters 9 inches and under will have perforated pads bonded directly to the back. This mount will have a minimal stand-off. The price listed includes a stencil guide. |
 |
Combination Mount Threaded blocks are solvent-bonded to the letter backs. The top portion of the letter receives studs through pads and the bottom pad only. This mounting procedure is the same as a stud mount but, adds securing pads to the installation surface with silicone. Most letters are 9 inches and under, will have perforated pads bonded directly to the letter back, and have a stand-off. The price listed includes a drill pattern. 6" minimum height for combination mount. |
 |
Combination All Mount Threaded blocks are solvent-bonded to the letter backs. All mount locations receive a stud through a pad. The mounting procedure is the same as a stud mount with the addition of securing pads to the installation surface with silicone. The price listed includes a drill pattern. 6" minimum height for combination all mount. |
 |
Standard Mounting In-Line for rail, brick, or block The price is listed in the pricing tables. |
More About Injection Molded Plastic Letters
