Design Guide: Fabricated Metal Push Thru Face Lit

This guide is here to assist you in creating artwork that meets our minimum design specifications for your fabricated metal push thru face lit project. To quickly navigate to a specific section, click the links below.

Can Size	Acrylic
Stroke and Serif	Fillet Radius
Minimum Letters	Swoosh Fillet Radius
Maximum Letter/Logo	LED
Minimum Face Material

Tip: Need to look up a design term? View our glossary of common terms.

Can Size

Can Size	Minimum	Maximum
Stainless Steel	4 in	36 in
Aluminum	4 in	48 in
Returns	2 in	4 in

Stroke and Serif

Letters

0.375 in minimum

Minimum Letters

2 in minimum height

Maximum Letter/Logo

14 inch by 14 inch

Minimum Face Material

Between Letters	0.125 in
From Return	1 in
Between Separate Push Thru Acrylic Pieces (if larger than 14")	1.25 in

Acrylic

Thickness	0.375 in - 1 in
Visible Outside (Stainless Steel)	0.25 in - 0.5 in
Visible Outside (Aluminum)	0.25 in - 0.75 in

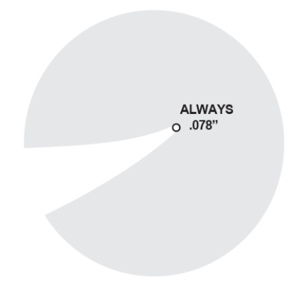

Fillet Radius

Inside of acrylic insert: 0.078 in

Swoosh Fillet Radius

Inside of acrylic insert: 0.078 in

LED

	Wire Hole	0.375 in
	Standard LED	0.5 in x 1.8 in
	RGB LED	0.625 in x 2.75 in
	Cable	10 ft. long standard

All artwork is reviewed by Gemini before ordering. If modifications are required on submitted artwork, a Gemini team member will work with you to find a solution. If you have questions about your artwork, please contact us through your Partner Portal account.
