      Design Guide: Acrylic on Foam

      This guide is here to assist you in creating artwork that meets our minimum design specifications for your Acrylic on Foam project. To quickly navigate to a specific section, click the links below.

      Minimum Letter Size Taping Size Limit
      Minimum Serif Mounting Stroke
      Minimum Stroke Decorative Standoffs
      Minimum Opening Acrylic on Foam Size Limit
      Fillet Radius

      Tip: Need to look up a design term? View our glossary of common terms.



      Minimum Letter Size

      1/2 in, 3/4 in, and 1 in Smallest letter: 4 in
      1.5 in and 2 in Smallest letter: 5 in
      3 in Smallest letter: 6 in





      Minimum Serif

      1/2 in, 3/4 in, and 1 in 0.250 in
      1.5 in, 2 in, and 3 in 0.375 in





      Minimum Stroke

      1/2 in, 3/4 in, and 1 in 0.250 in
      1.5 in, 2 in, and 3 in 0.375 in

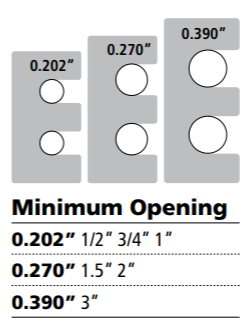

      Minimum Opening

      1/2 in (below 3 in h) 0.140 in
      1/2 in (over 3 in h) 0.202 in
      3/4 in and 1 in 0.202 in
      1.5 in and 2 in 0.270 in
      3 in 0.390 in





      Fillet Radius

      Inside 1/2 in (below 3 in h) 0.070 in
      Inside 1/2 in (over 3 in h) 0.100 in
      Inside 3/4 in, 1 in 0.100 in
      Inside 1.5 in and 2 in 0.135 in
      Inside 3 in 0.190 in
      Outside Regular 0.025 in
      Outside Swoosh Tips 0.070 in





      Taping Size Limit

      All gauges 12 in x 12 in





      Mounting Stroke

      Double Face Tape Strips 0.250 in
      Pads 0.250 in
      6-32 studs drill flush 0.250 in
      10-24 studs drill flush 0.300 in
      GI-68 block for 6-32s 0.400 in
      Combo and combo all 0.640 in
      GI-18 block for 10-24s 0.640 in
      GI-14 block for 10-24s

      1.14 in





      Decorative Standoffs

      Thru hole for 1/2 in diameter: 0.41 in
      Thru hole for 1 in diameter: 0.53 in







      Size Limits

      1/2 in and 3/4 in 46 in x 95 in
      1 in, 1.5 in, 2 in, and 3 in 46 in x 46 in



      All artwork is reviewed by Gemini before ordering. If modifications are required on submitted artwork, a Gemini team member will work with you to find a solution. If you have questions about your artwork, please contact us through your Partner Portal account.
